Модель снята с производства

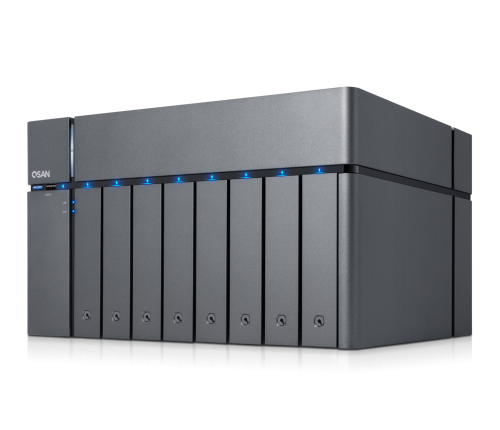

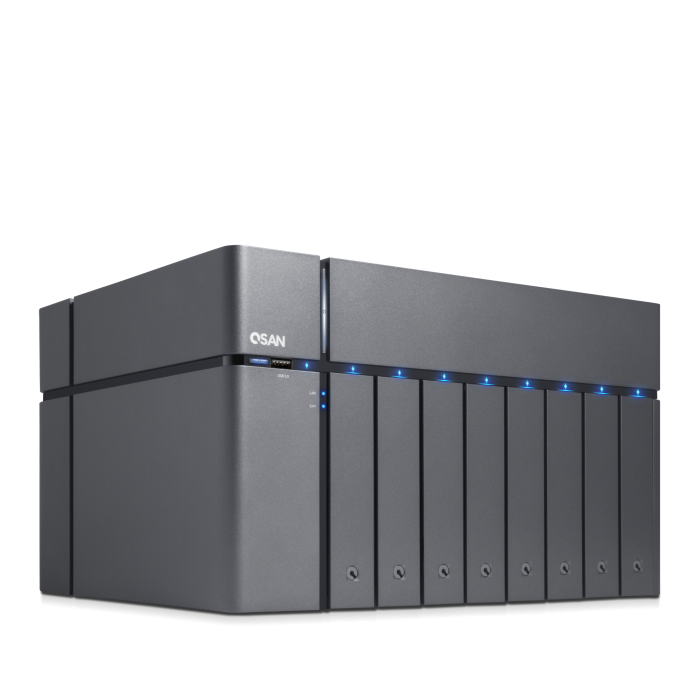

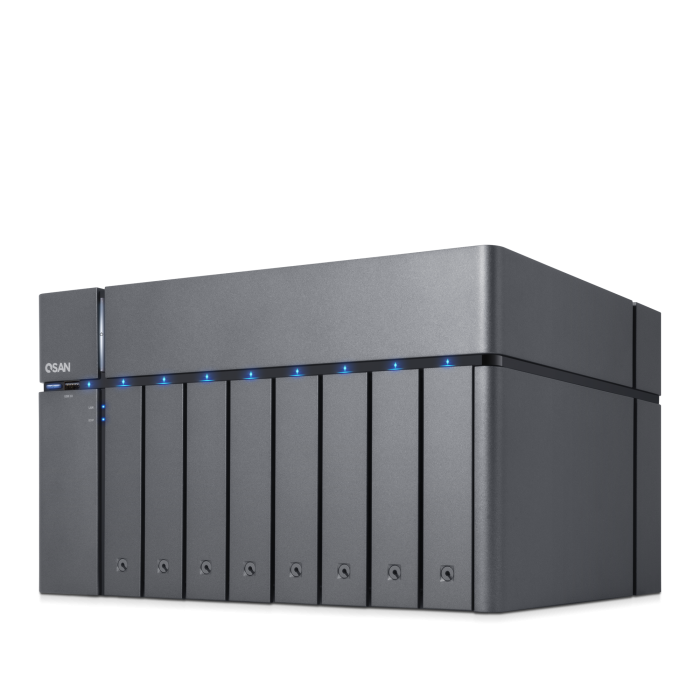

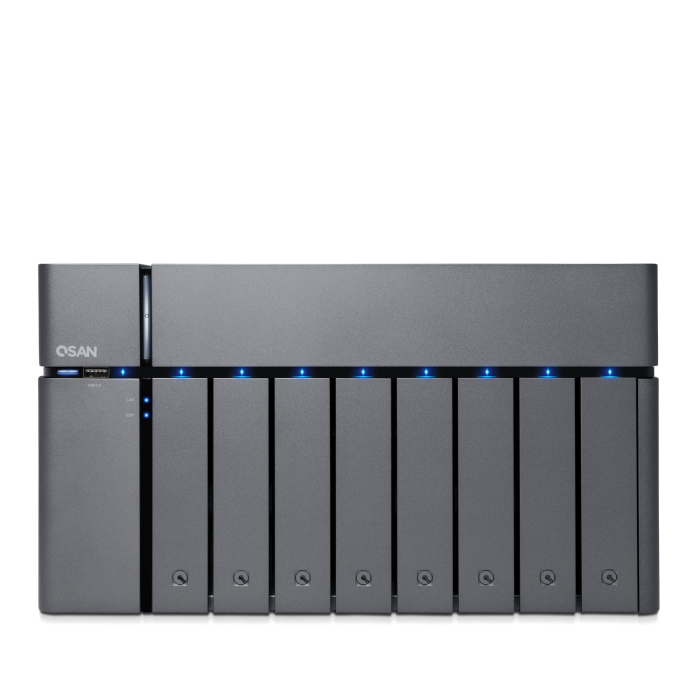

XCubeNAS

XN7008T

Процессор

Intel® Core i3 3.9GHz Dual-Core Processor

ОЗУ

8GB DDR4 SO-DIMM (Max 32GB)

Легкая установка

Установка дисков и обслуживание без использования инструментов

Возможность расширения интерфейсов

High-Speed 10GbE Adapter Card

Быстрый доступ к файлам

Web Finder

Не требуется установки приложений, вы можете легко найти свой NAS

Найдите Свой NAS

XFinder

XFinder - утилита для поиска XCubeNAS в локальной сети

Найдите свой NAS

Best Enterprise-Level Encryption solution for Entry Enterprise and SMB

SED

Support Self-encrypting drive technology.

Smart Snapshot Retention

More protection but less resources.

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

AES256 Encryption

Pool Encryption fulfill Military regulations.

Qouta

Effective management, optimize allocating.

Storage for Virtualization

Compatible with virtualization standard for VMware® vSphere™，Veeam™，Microsoft® Hyper-V.

Идеальная архитектура

Увеличьте производительность, используя SSD кэширование

Корпус со скрытой вентиляцией

Управление скоростью вращения вентилятора

Установка без использования инструментов

Простой и интуитивно понятный

Магнитный ключ

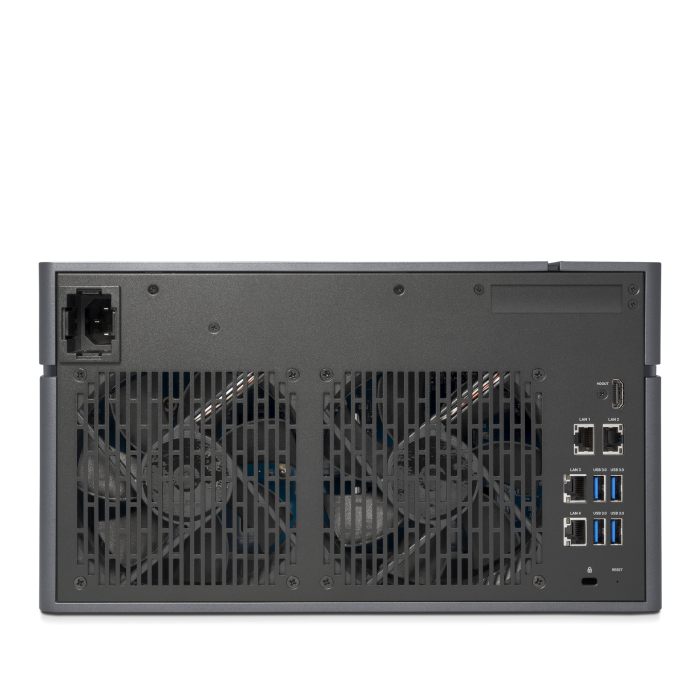

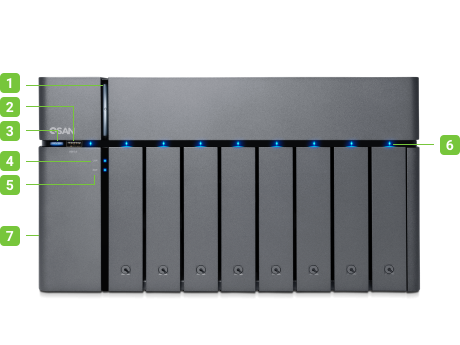

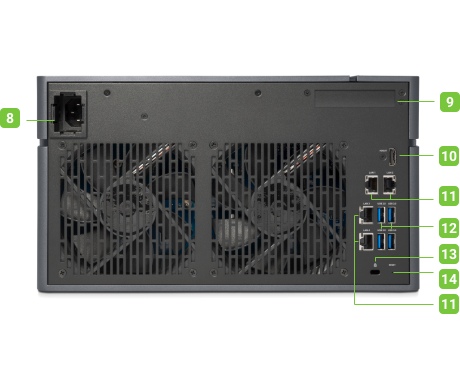

Кнопка включения Порт USB 3.0 Кнопка копирования USB Статус LAN Expansion Unit Status Статус дисков и SSD Сервисная Дверца Разъем питания Дополнительные Порты Расширенияn (Gen3 x 8) Порт HDMI Порт 1Gb LAN Порт USB 3.0 Kensington Lock Кнопка возврата к заводским настройкам

Технические характеристики системы

CPU
Architecture	All-in-one
Storage OS	QSM 3
Processor	Intel® Core™ i3
CPU Architecture	64-bit
CPU Frequency	Dual-Core 3.9GHz
Memory
Memory Module Pre-installed	8GB DDR4 SO-DIMM
Total Memory Slots	2
Memory Expandable up to	32 GB
Notes	-
Storage
Drive Bays	3.5" Slot x 8 2.5" Slot x 1
Maximum Drive Bays with Expansion Unit	-
Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Drive Interface	SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity	132TB
Maximum Raw Capacity with Expansion Units	-
Hot Swappable Drive	✓
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 8 + 3.84 TB drive x 1 Capacity may vary by RAID types
External Port
USB 2.0 Port	-
USB 3.0 Port	5 (Front: 1, Rear: 4)
HDMI Port	1
Others	-
Notes	-
Connectivity Port
1GbE RJ45 LAN Port	4 (Onboard)
10GbE RJ45 LAN Port	2 (Option: THBE10R2)
10GbE SFP+ LAN Port	2 (Option: XN-E1002)
Thunderbolt 3	2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel	-
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	-
Notes	-
PCIe Expansion
Gen3x8 Slot	1
Gen3x4 Slot	-
Notes	For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot	-
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	177 x 310 x 235
Chassis Form Factor	Tower 8+1 Bay
Net Weight (kg)	4.8
Gross Weight (kg)	6
Notes	-
Memory Protection
Cache-to-Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	120mm x 120mm x 2 pcs
Replaceable System Fan	-
Power Recovery	✓
Scheduled Power On/Off	✓
Wake on LAN/WAN	✓
Power Supply Unit / Adapter	FLEX ATX 200W
Redundant Power Supply	-
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	-
British Thermal Unit	-
LCM Support	✓
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI RCM SASO EAC
Notes	-
Warranty
Standard Warranty	2 years
Notes	-
